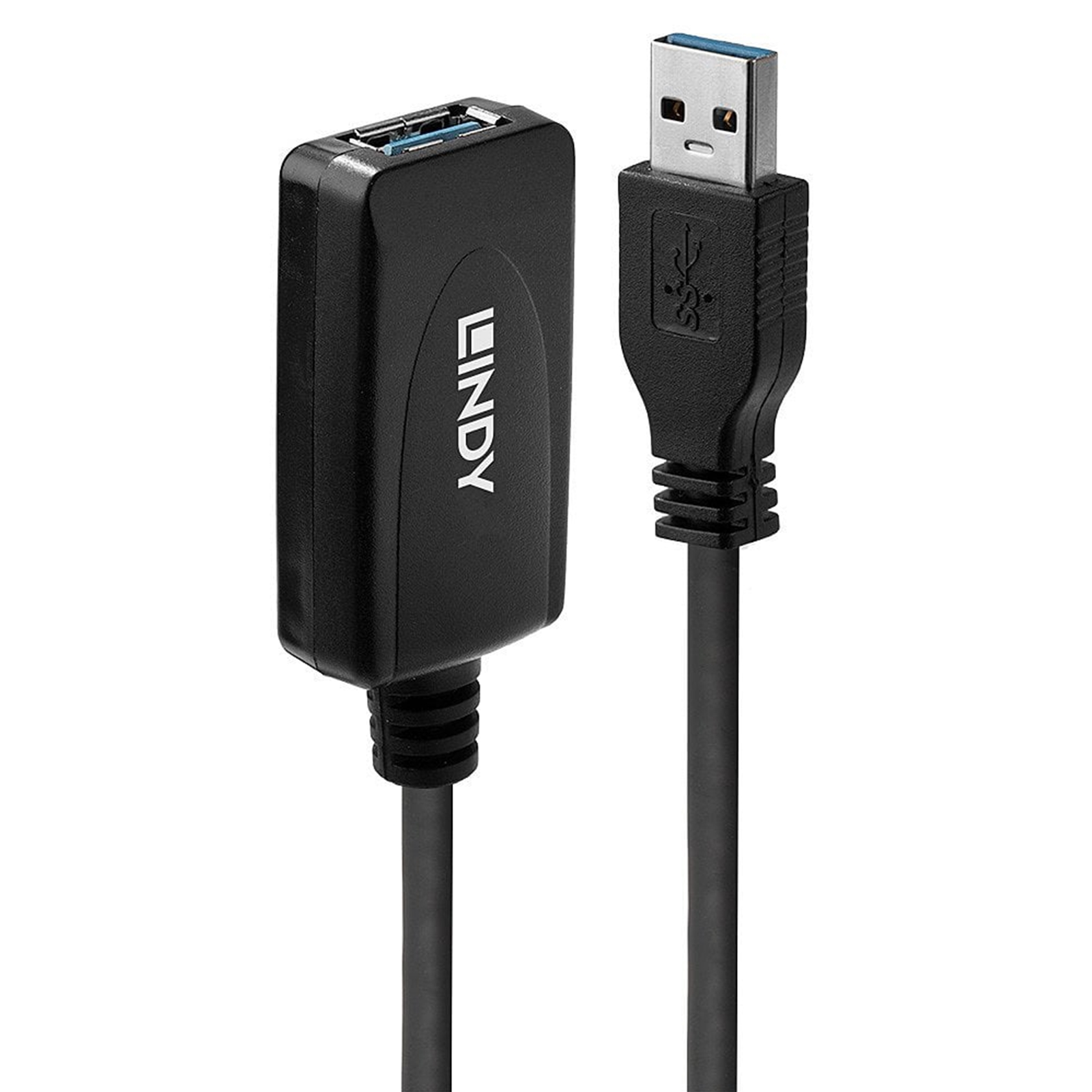

LINDY 43155 5m USB 3.0 Active Extension, Supports transfer rates up to 5Gbps, Plug & Play, 2 year warranty
Roll over image to zoom in
Click to open expanded view

LINDY 43155 5m USB 3.0 Active Extension, Supports transfer rates up to 5Gbps, Plug & Play, 2 year warranty

£36.22

15 in stock

  • Connection A: USB-A (M)
  • Connection B: USB-A (F)
  • Connection C:
  • Length: 5m
  • Colour: Black
Wishlist
Compare
SKU: 43155 Categories: , , Tag:

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 5m whilst continuing to support data transfer rates of up to 5Gbps.

With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together.

The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers.

It is certified by Google to provide a long distance active connection between the ASUS Chromebox and USB camera in a Google Hangouts Meet hardware installation, perfect for use in boardrooms and other video conferencing scenarios.

Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Connectors

Connector A:
USB Type A Male

Connector B:
USB Type A Female

Housing Material:
Plastic

Connector Plating:
Gold 3µ

Pin Construction:
Brass

Pin Plating:
Gold 15µ

Dimensions (approx.) WxDxH:
USB A Male: 16x48x6mm (0.63×1.89×0.24in)
USB A Female: 24x46x12mm (0.94×1.81×0.47in)

Cable Construction

Length:
5m (16.4ft)

Standard:
USB 3.1 Gen 1 / 3.0

Colour:
Black

Type:
Round

Jacket Diameter:
5.5mm (0.22in)

Jacket Material:
Matt PVC

Conductor Material:
Tinned Copper

Conductor Gauge:
28AWG+24AWG

Shielding:
AL Mylar

Specifications

Supported Bandwidth:
5 Gbps

Nominal Attenuation:
1.5dB/2M@0.1GHz
5.0dB/2M@1.25GHz
7.5dB/2M@2.5GHz
25dB/2M@7.5GHz

Minimum Bend Radius:
55mm (2.17in)

Maximum Tensile Load:
1500PSI min

Operating Temperature:
0°C – 60°C (32°F – 140°F)

Storage Temperature:
0°C – 70°C (32°F – 158°F)

Transmission Medium:
Twisted Pair

Transmission Technology:
USB 3.1 Gen 1 / 3.0

Miscellaneous

Packaging Type:
Blister

Packaging Dimensions:
237x138x60mm (9.33×5.43×2.36in)

Net Weight:
0.22kg (0.49lb)

Gross Weight:
0.289kg (0.52lb)

Warranty (Years):
2

Certified:
CE, UKCA, FCC, RoHS & REACH

Package Contents
USB 3.0 Active Extension 5m
