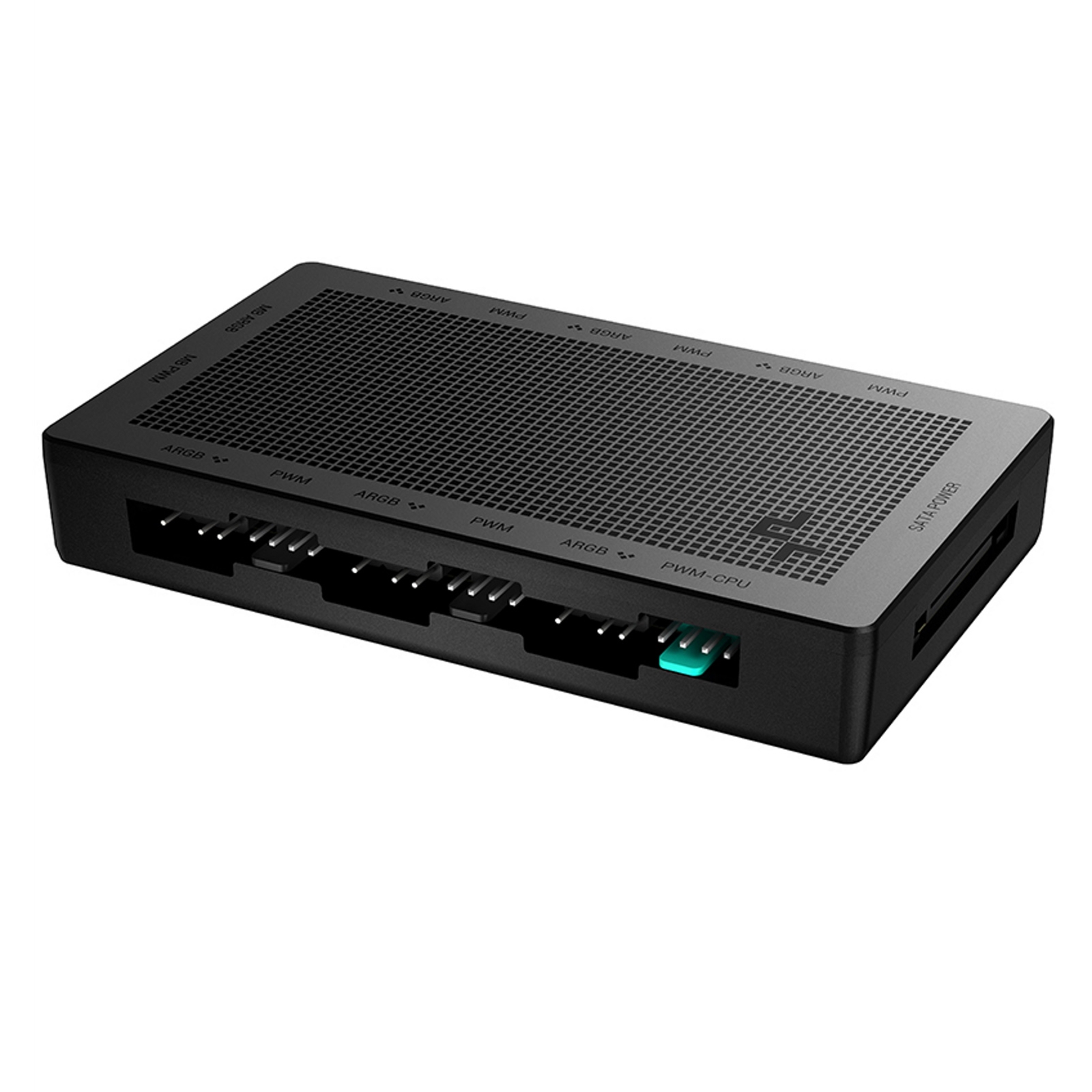

DeepCool SC790 2-in-1 Addressable RGB & PWM Fan Hub, 6-Port, Connect up to 6 PWM ARGB 3-Pin Fans Simultaneously While Occupying Minimal Motherboard Headers, Magnetic for Easy Installation
£23.16
- Product Type: Fan Hub
- Connection A: 6 x 3-Pin ARGB (M) / 6 x 4-Pin PWM Fan (M)
- Connection B: SATA Power (M)
- Length: Adapter
- LED Colour: Addressable RGB
SC790
2-in-1 PWM & RGB Hub
The DeepCool SC790 2-in-1 PWM & RGB hub provides fan and lighting control for up to 6 total PWM ARGB fans simultaneously while occupying minimal headers on a motherboard.
Compatible with…
– Asus Aura Sync
– Gigabyte RGB Fusion
– MSI Mystic Light Sync
– ASRock Polychrome Sync
PWM & ARGB SPLITTER HUB
The SC790 connects to a 3-pin 5V ARGB header and 4-pin PWM header on a motherboard and extends their signal to connect up to 6 PWM ARGB fans for total synchronization. The included SATA interface ensures stable continuous power for all connected devices.
– The compact and sturdy case is also magnetic, allowing it to be conveniently tucked away behind the motherboard tray or positioned anywhere else.
– Supports ASUS Aura, GIGABYTE Fusion, MSI Mystic Light, and ASRock Polychrome.
– This product is NOT compatible with 12V 4-Pin RGB devices.
Product Dimension
102 x 60 x 17 mm
Net Weight
69g
Port Type
ARGB 3-Pin
PWM 4-Pin
Fan Ports
6 Ports x 4-Pin PWM
Length of Fan Connector Cable
24AWG 500 mm
Fan Rated Voltage
12V DC
Fan Rated Current
2.0A (1 Port) / Total 4.5A (6 Ports)
Addressable RGB Ports
6 Ports x 3-Pin Addressable RGB
Length of ARGB Connector Cable
24 AWG 538mm (Asus Asrock MSI) + 50mm (Gigabyte)
RGB Rated Voltage
5V DC
RGB Safety Current
2.0A (1 Port) / Total 4.5A (6 Ports)
Power Connector
SATA Power
Power Safety Current
4.5A Max
Mounting Method
Magnetic
Product Colour
Black
