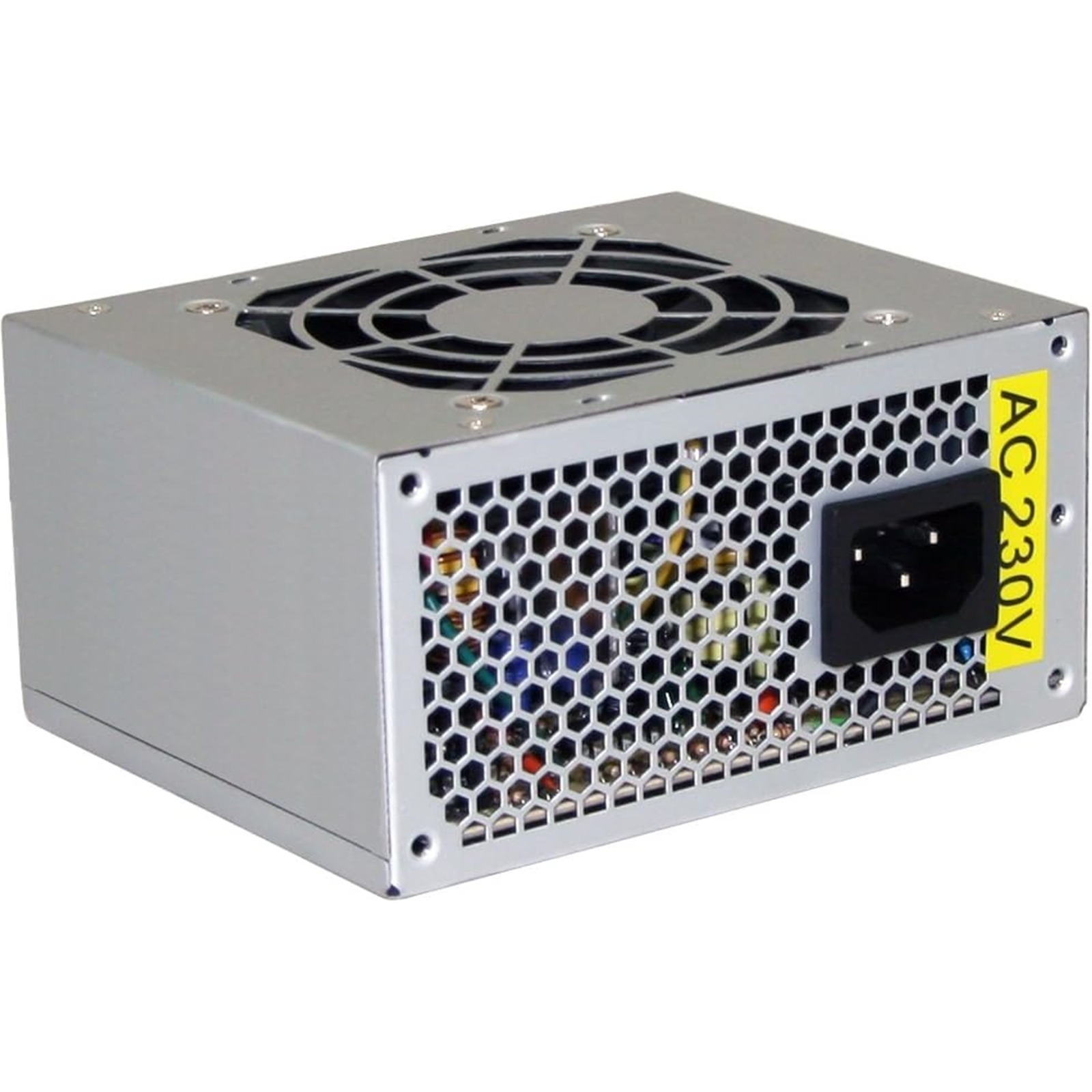

CIT 300W Micro Atx PSU M-300U, Silent PSU with Temperature Control Fan

£22.80

1 in stock

  • Wattage: 300w
  • Size/Version: ATX
  • Modular: No
  • SATA Connections: 3
  • Certification: None
SKU: M-300U Categories: , , Brand:

Key Features

Small factor PSU
Silent PSU with Temperature Control Fan
Complies with Intel ATX12V 2.31VER
Fan Speed Control Function Inside
Passive PFC (Power Factor Correction)
Low noise with intelligent-thermal fan control technology
ATX 12V Compliant for all kinds of CPU and mainboard
MTBF 50,000 Hours @ 25 degrees C

PSU Specifications

AC INPUT: 230 VAC 5A 50-60Hz

DC Output:
+3.3V +5V +12V1 -12V +5VSB
16A 16A 14A 0.3A 2A

Max: 300W

Connectors

20+4 Pin Main Connectors: 1
4-Pin 12V Connectors: 1
SATA Connectors: 3
4-Pin Molex Connectors: 2
Floppy Drive Connectors:1

Detailed Specifications

Dimensions: 125mm x 65mm x 100mm (W x H x D)
Input Voltage: 230 VAC
Input Current: 5A
Input Frequency Range: 50-60Hz
PFC: Yes – Passive Power Factor Control
Power Good Signal: 150-450 ms
Hold Up Time: 1ms-40ms
Efficiency: 75%
MTBF: 100,000 Hours
Protection: OVP / UVP/ OPP
Power: 300W
Operation Temperature: 45°C
Safety: CE / ROHS
Cooling: 80mm fan
Noise: < 17 dBA
