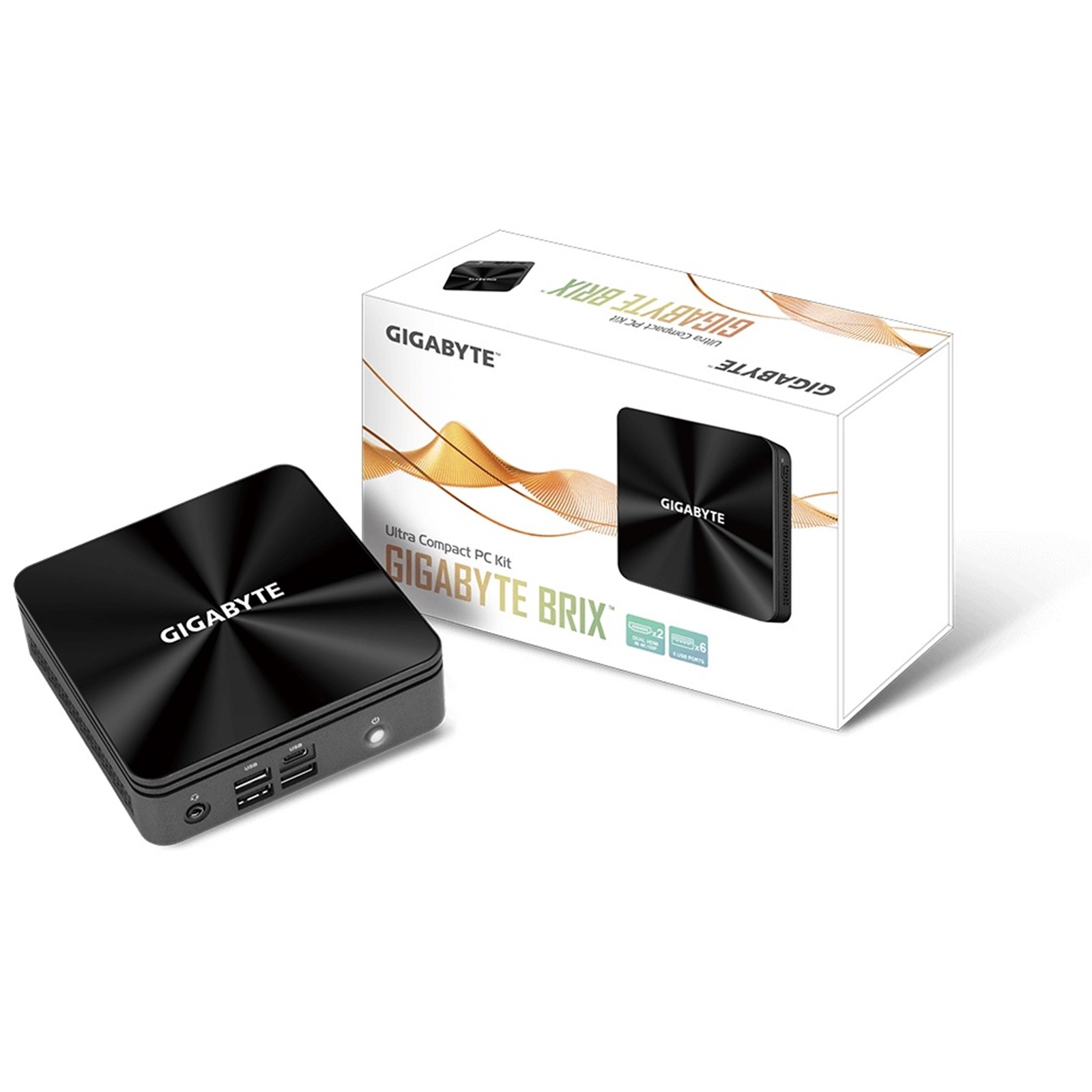

Gigabyte BRIX Intel i3-10110U 4.1Ghz GHz Barebone Ultra Compact PC Kit (Requires HDD/SSD and RAM)

Features Intel Core Dual Core i3-10110U
-Ultra compact PC design at only 0.46L (34.4 x 112.6 x 119.4mm)
-1 x M.2 SSD (2280) slot support PCI-e x4 /SATA
-2 x SO-DIMM DDR4 2666 Mhz slots MAX 64GB
-Intel® IEEE 802.11ac, Dual Band Wi-Fi & Bluetooth 4.2 NGFF M.2 card
-HDMI plus Mini DisplayPort Outputs (Supports dual displays)
-2 x USB 3.1 (1 x USB Type-C™)
-2 x USB 3.0
-Intel Gigabit LAN
-Dual Array Microphone
-Headphone Jack
-VESA Mounting Bracket (75 x 75mm + 100 x 100mm

Dimension
34.7 mm x 119.5 mm x 119.5 mm (1.37″ x 4.7″ x 4.7″)

Motherboard Size
105mm x 112.4mm

CPU
10th Generation Intel® Core™ i3 Processor
i3-10110U 4.1GHz, 2 core (TDP 15W)

Memory
2 x SO-DIMM DDR4 slots
2133MHz
Max: 32GB

LAN
Gigabit LAN (Intel i219v)

Wifi Card
Intel Dual Band Wireless-AC 3168

Graphics
Intel UHD Graphics 620

Audio
Realtek ALC255

Maximum Resolution
HDMI Resolution: 4096 x 2304 @ 60Hz (Max.) (HDMI 2.0a and HDCP 2.2 )
Mini DP Resolution: 3840 x 2304 @ 60Hz (Max.)

Expansion Slots
1 x M.2 SSD (2280) slot support PCI-e x4 /SATA
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

Front I/O
3 x USB 3.2 Gen 2 type C
1 x USB 3.2 Gen 2 Type C)
1 x head phone jack with MIC
1 x Power Button

Rear I/O
2 x HDMI (2.0)
1 x Mini DisplayPort (1.2)
2 x USB 3.2 Gen 2
1 x RJ45
1 x DC-In
1 x Kensington lock slot

Storage
Supports: 2.5” HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)

Power Supply
Input: AC 100-240V
Output: DC 19V
3.42A

VESA
Bracket included
Supports 75 x 75 and 100 x 100 mm

Support OS
Windows 10

Environment
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
